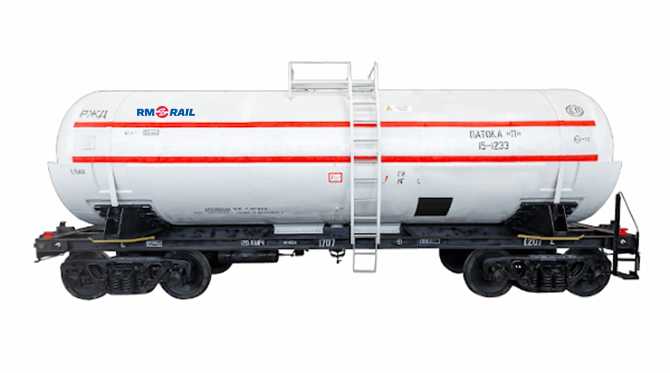

Tank car for transportation of molasses

  • Universal drain device with two layers of protection
Make an order
Load capacity, t 67,5
Tare weight, t, max/min 25,5/26,5
Barrel capacity, m3: full 53,5
Axle load, tf 23,5
Loading gauge, GOST 9238-83 02-ВМ
Lenght between truck centers, mm 7800
Lenght over couplers, mm 12020
Design speed, km/h 120
Barrel inside diameter, mm 2600
Service life, years   30

The barrel is made of stainless steel.

Loaded through the loading hatch with the hatch cover open. Unloaded by gravity with both the drain device and the hatch cover open.

Transportation of treacle, vegetable oils, syrups is possible.
