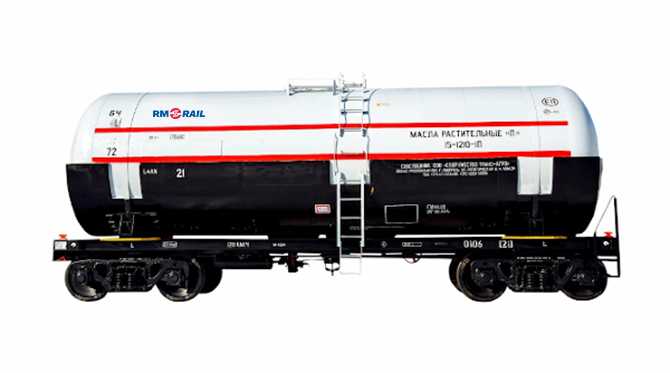

Tank car for transportation of plant oils

  • With steam heating jacket
  • Extended list of transported cargoes: 15
Make an order
Load capacity, t 66
Tare weight, t, max/min 26,7/28
Barrel capacity, m3: full 72,4
Axle load, tf 23,5
Loading gauge, GOST 9238-83 02-ВМ
Lenght between truck centers, mm 7800
Lenght over couplers, mm 12020
Barrel inside diameter, mm 3000
Service life, years 30

The car is made of carbon steel with food-grade rubber linings that allow to maintain the quality of oils.

Drain device with selectable number of layers of protection.

Suitable for transportation of high viscosity and solidifying plant oils.
