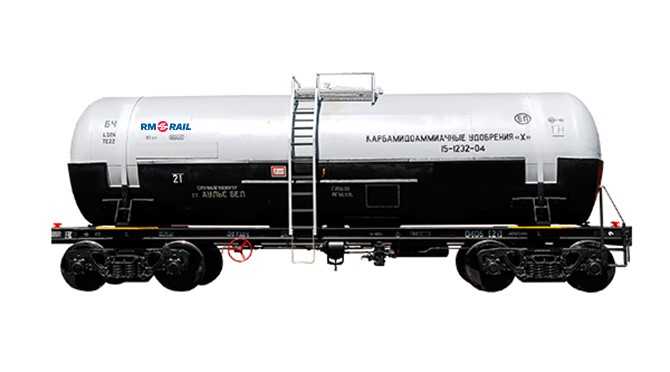

Tank car for transportation of liquid nitrogen fertilizers

  • Optimal combination of load and barrel capacity
  • Bottom drain with three layers of protection
Make an order
Load capacity, t 67,5
Tare weight, t, max/min 25,7/26,5
Barrel capacity, m3: full 53,5
Axle load, tf 23,5
Barrel inside diameter, mm 2600
Loading gauge, GOST 9238-83 02-ВМ
Lenght between truck centers, mm 7800
Lenght over couplers, mm 12020
Height above top of rail, max, mm 4200
Service life, years 24
Tank material, steel grade 09Г2С-14

The design uses steam heating jacket.

Load capacity of the tank car is 67.5 tons.
