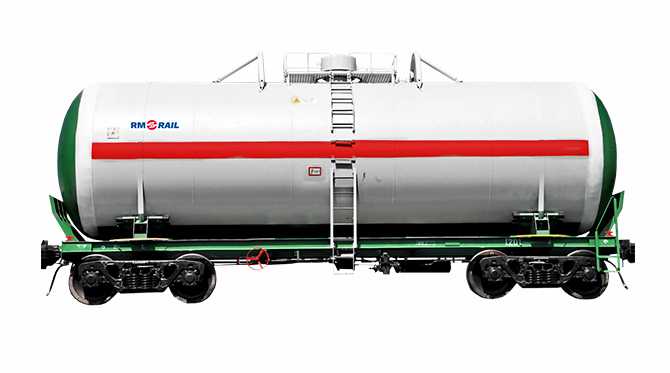

Tank car for transportation of liquefied hydrocarbon gases 15-1288

15-1288
Design features of the tank car provide a longer warranty period for the customer.

Transportation of liquefied petroleum gases of up to 0.71 t/m3 density.

Reinforced safety arches provide reliable protection for reinforcing section in case of accident, whereas bolted connection of the arches to the tank barrel reduces labor input to repair or replace damaged components.

Fill/drain fittings produced by both RM Rail and leading suppliers are used in the design.


Specifications
Capacity, t 56
Tare weight, t, min/max 36,1/38
Barrel capacity, m3: full 87,1
Axle load, tf 23,5
Loading gauge, GOST 9238-83 1-T
Length between truck centers, mm 7800
Lenght over couplers, mm 12020
Height above top of rail, max, mm 5250
Barrel inside diameter, mm 3200
Service life, years 40
