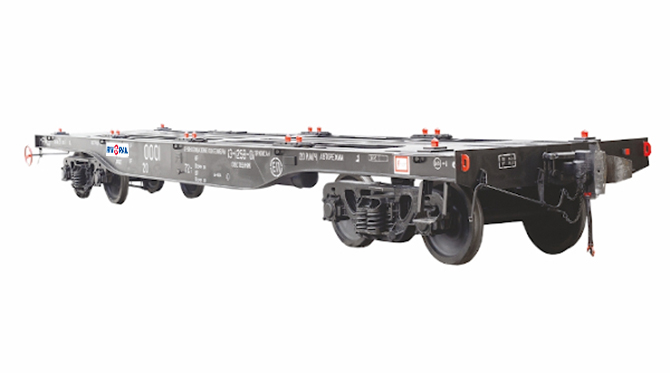

Flat car for transportation of large-tonnage containers 13-1258-01

Смотреть характеристики Make an order
sales@rmrail.ru +7 (495) 269-02-89
13-1258-01
Can be used for transportation of tank containers for dangerous goods of up to 36 tons gross weight.


Specifications
Load capacity, t 72
Tare weight, t, max/min 21
Loading gauge, GOST 9238 0-ВМ
Maximum designed static axle load to rails, kN (tf) 230,5 (23,5)
Lenght over couplers, mm 14620
Corner fittings fixed, pcs 4
Corner fittings hinged, psc 12
Type gear sticking OCT 32.175 T3
Transported containers 1AAA, 1AA, 1A, 1AX, 1BBB, 1BB, 1B, 1BX, 1CC, 1C, 1CX, 1DD, 1D, 1DX, 1EEE, 1EE, 1E
Service life 32
