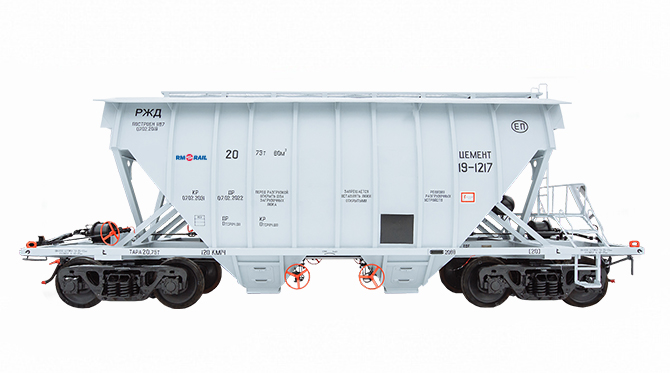

19-1217
Body capacity: 60 m3.

The teardrop shape increases the usable body volume up to 95%, and the smooth internal walls prevent sticking of cargo material, which makes the unloading process shorter.

Owing to the hopper walls material and the stiffened end wall design, the car withstands shock loads and impact from the installed vibrator without distortion.

Possibility to simultaneously lock all loading hatches and seal them with one seal.
Specifications
Load capacity, t 73
Tare weight, t, max/min 19,4/21
Body capacity, m3: full 60
Axle load, tf 23,5
Loading gauge, GOST 9238 1-Т
Lenght between truck centers, mm 7800
Lenght over couplers, mm 12020
Height above top of rail, max, mm 4456
Number of loading gates 4
Number of unloading gates 4
Service life, years 26
