Назад в каталог

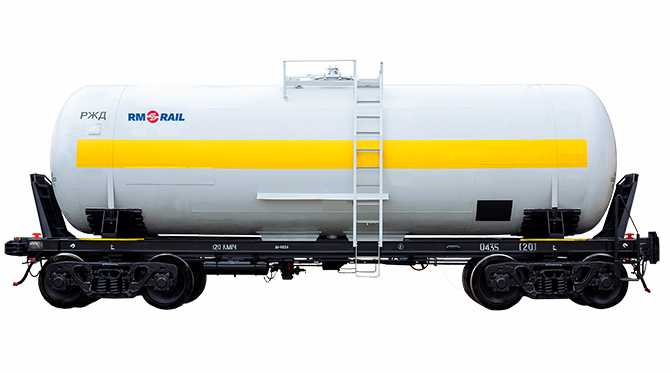

15-1232
Optimal load capacity for each type of cargo.

Transportation of the widest possible range of cargoes reduces empty mileage.

High-quality drain device with selectable number of layers of protection.

Can be used for authorized transportation of caustic soda, acetone, liquid nitrogen fertilizers, acetic acid of over 80% concentration by weight.

It is possible to use 23.5 tf axle load bogie with the same barrel volume and list of transported cargoes.
Specifications
Capacity, t 68
Tare mass, t, max/min 24,8/25,6
Barrel capacity, m3: full 54
Barrel inside diameter, mm 2600
Loading gauge, GOST 9238-83 02-ВМ
Length between truck centers, mm
7800
Length over couplers, mm
12020
Height of rail elevation, max, mm 4556
Service life, years 27
Main material, steel 08Х18Н10T
