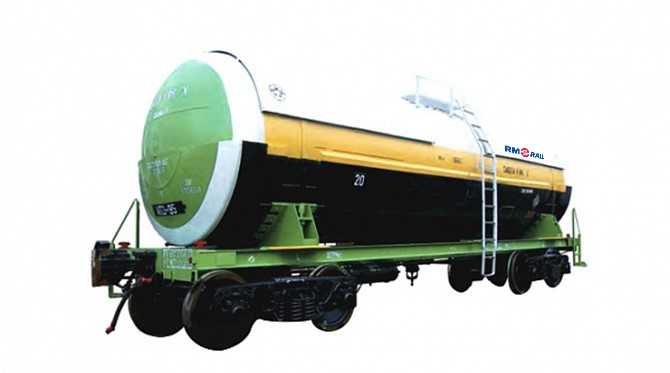

- Tank car for transportation of yrea-formaldehyde concentrate and liquid nitrogen fertilizers
Load capacity, t | 66,4 |
Tare weight, t, max/min | 26,5/27,6 |
Barrel capacity, m3: full | 53,5 |
Axle load, tf | 23,5 |
Barrel inside diameter, mm | 2600 |
Loading gauge, GOST 9238-83 | 02-ВМ |
Lenght between truck centers, mm | 7800 |
Lenght over couplers, mm | 12020 |
Height above top of rail, max, mm | 4200 |
Service life, years | 20 |
Tank material, steel grade | 08Х18Н10Т |
