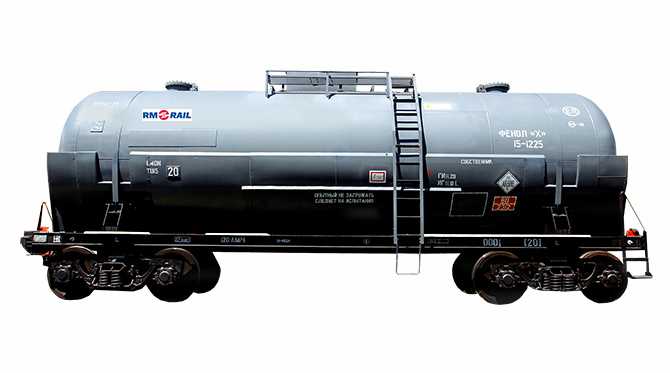

Tank car for transportation of phenol

Load capacity, t 63
Tare weight, t, max/min 27,3/28,9
Barrel capacity, m3 63
Axle load, tf 23,5
Barrel inside diameter, mm 2800
Loading gauge, GOST 9238-83 02-ВМ
Lenght over couplers, mm 12020
Length between truck centers, mm 7800
Height above top of rail, max, mm 4566
Service life, years 27
Tank material, steel grade 12Х18Н10T

Equipped with inlet relief valve.

Stainless steel construction of the tank barrel increases service life from 18 to 27 years.

Protective shields installed.
