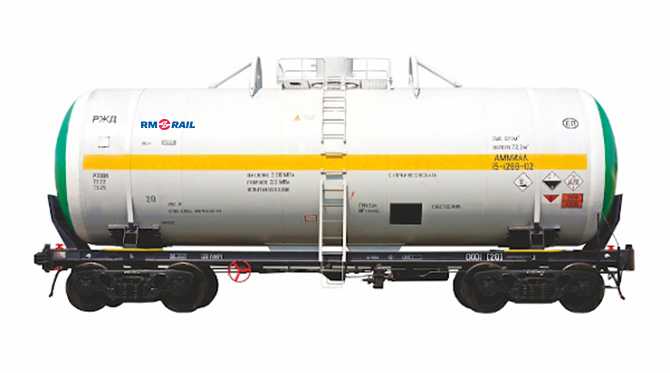

15-1288-02
Increased barrel capacity: 87.1 m3.

Reinforced protective shields on the tank car underframe significantly reduce the risk of barrel damage in case of accident.

The barrel size is maximum for 1-T loading gauge. With its maximum body capacity, the tank car fully matches the consignor’s /consignee’s infrastructure.

Fill/drain fittings from leading manufacturers.


Specifications
Load capacity, t 56
Tare weight, t, min/max 36/38
Barrel capacity, m3: full 87,1
Axle load, tf 23,5
Loading gauge, GOST 9238-83 1-T
Length between truck centers, mm 7800
Lenght over couplers, mm 12020
Height above top of rail, max, mm 5250
Barrel inside diameter, mm 3200
Service life, years 40
