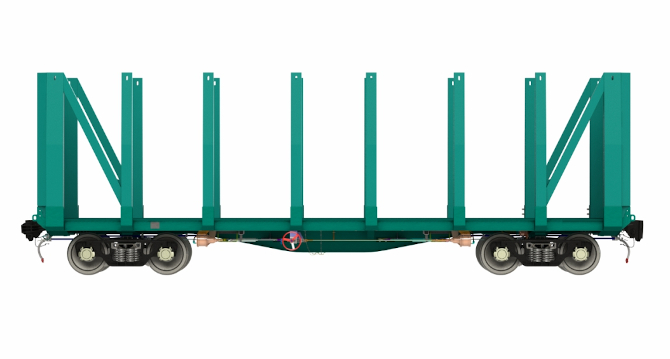

Skeleton flat rail car for transportation of lumber 13-1289

13-1289
Multi-purpose use due to non-gusseted column base.

Lower labor input of the flat car repair owing to time-saving bolted connection of end walls and columns to body frame.
Specifications
Load capacity, t 71
Tare weight, t, min/max 23/23,66
Body inside capacity, m3 127
Floor area, m2 37
Axle load, kN (tf) 230,5 (23,5)
Loading gauge, GOST 9238  1-T
Lenght over couplers, mm 14620
Rail car height max, mm 4700
Rail car width max, mm 3220
Service life, years 32
