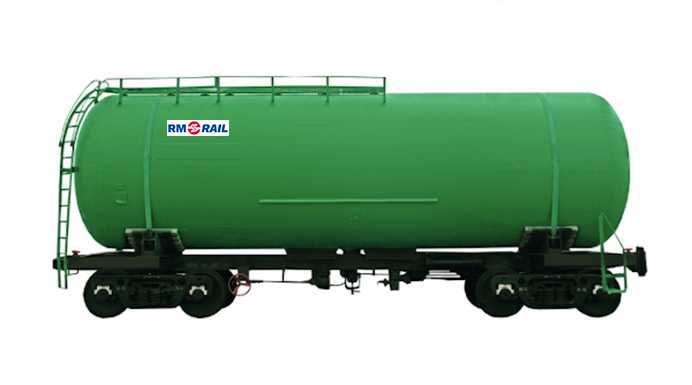

Tank car for transportation of gasoline and other petroleum products with 25 tf axle load
15-1218

  • Increased load capacity: 72.7 t
Make an order
Specifications
Load capacity, t 72,7
Tare weight, t, max/min 27,3
Barrel capacity, m3: full 90
Axle load, tf 25
Loading gauge, GOST 9238-83 1-Т
Lenght between truck centers, mm 7800
Lenght over couplers, mm 12020
Height above top of rail, max, mm 4850
Barrel inside diameter, mm 3260
Overhaul life, thousand kilometers
500 (4 years)
Service life, years 32
Description

Increased barrel capacity: 90 m3.

Use of innovative 25 tf axle load bogie allows to extend the list of transported cargoes including petroleum products of 1 t/m3 bulk density.

Increased overhaul life – 500 thousand kilometers (4 years) of runtime between repairs.

72.7 t load capacity due to lightweight platform design.

Maximum increase of tank barrel diameter due to relocation of ladders to cantilever portions of the tank.
