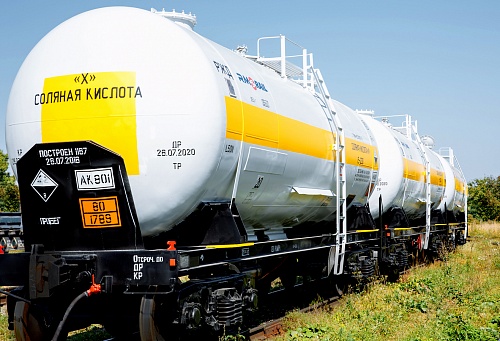

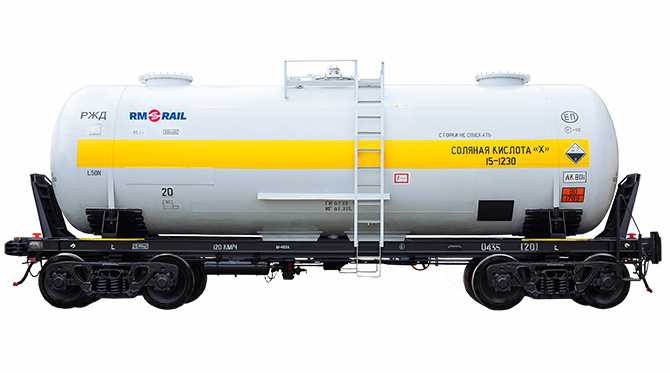

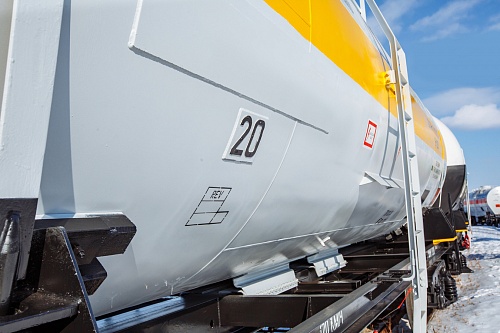

Tank car for transportation of hydrochloric acid
15-1230

Specifications
Load capacity, t 66,8
Tare weight, t, max/min 25,7/28,5
Barrel capacity, m3: full 62
Axle load, tf 23,5
Barrel inside diameter, mm 2800
Loading gauge, GOST 9238-83 02-ВМ
Lenght between truck centres, mm 7800
Lenght over couplers, mm 12020
Height above top of rail, max, mm 4556
Service life, years 18
Tank material, steel grade 09Г2С-14
Description

Optimal load capacity for each type of cargo.

Rubberized tank option.

Can be used for authorized transportation of hydrofluoric (fluorhydric) and hydrofluosilicic acids.
