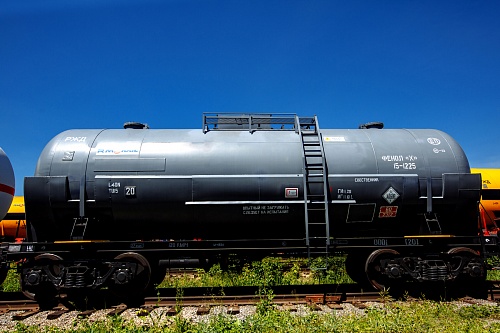

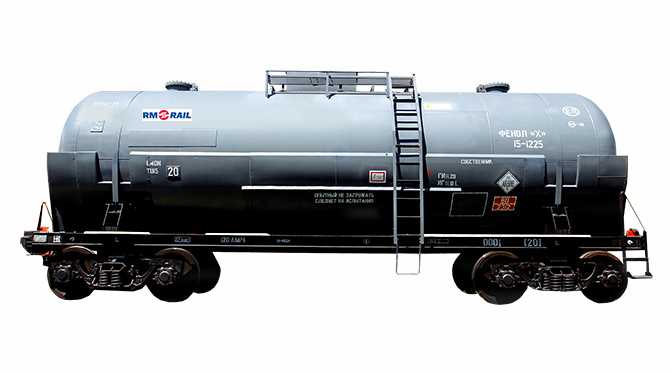

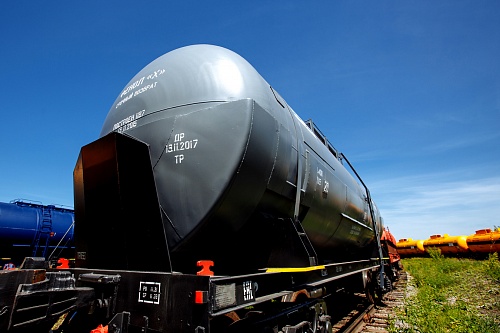

Tank car for transportation of phenol
15-1225

Specifications
Load capacity, t 63
Tare weight, t, max/min 27,2/28,8
Barrel capacity, m3 63
Axle load, tf 23,5
Barrel inside diameter, mm 2800
Loading gauge, GOST 9238-83 02-ВМ
Lenght between truck centres, mm 7800
Lenght over couplers, mm 12020
Height above top of rail, max, mm 4566
Service life, years 18
Tank material, steel grade 09Г2С-14
Description

Equipped with inlet relief valve.

Stainless steel construction of the tank barrel increases service life from 18 to 27 years.

Protective shields installed.
