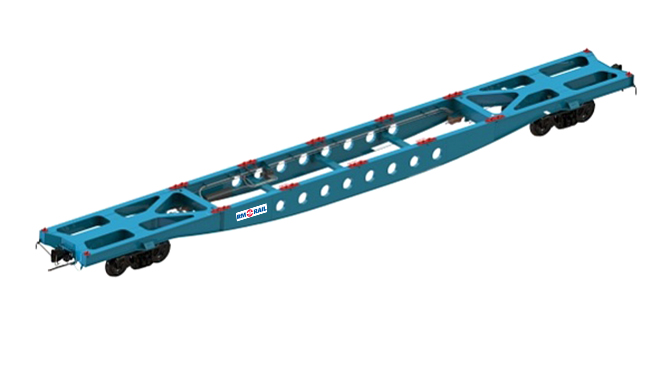

Flat car for transportation of large-tonnage containers
13-1294

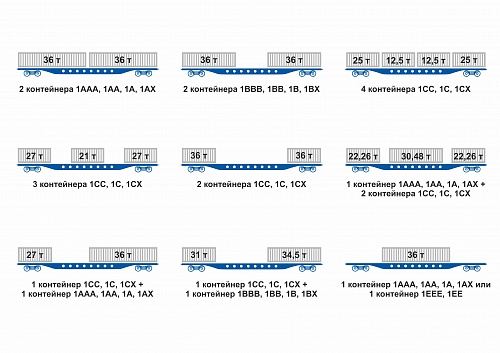

  • Up to 9 loading plans
Make an order
+7 (495) 269-02-89 sales@rmrail.ru
Specifications
Load capacity, t 75
Tare weight, t, min/max 24/25
Loading gauge, GOST 9238 1-T
Draft gear class per GOST 32913  Т3 or better
Bogie type per GOST 9246 Type 3
Axle load, tf 25
Height from coupler axis to top of rail, max, mm 1040-1080
Maximum height, mm
 1576
Height from top of rail to floor level (corner fitting base), max, mm 1478
Fixed corner fittings, pcs 4
Hinged corner fittings, pcs:
single 8
double
 6
Service life, years 32
Description

Suitable for transportation of general purpose, special purpose, thermally insulated containers, as well as pressure tank containers for liquids, gases and loose cargoes.
