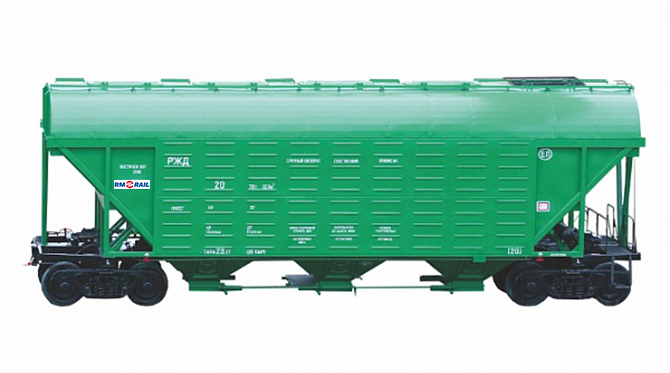

Hopper car for transportation of grain and food with 25 tf axle load
19-1259

Make an order
+7 (495) 269-02-89 sales@rmrail.ru
Specifications
Load capacity, t 76
Tare weight, t, max/min 24
Body capacity, m3: full 127
Axle load, tf 25
Loading gauge, GOST 9238 1-Т
Lenght between truck centers, mm 10500
Lenght over couplers, mm 14720
Height above top of rail, max, mm 4900
Angle of inclination of the end walls, degrees 45
Type of unloading mechanism Slide gate
Number of loading gates, pcs 30
Number of unloading gates, pcs 3
Description

Body capacity: 127 m3.

Effective layout of side wall columns.

The car height is adapted to all types of loading racks.

Sliding unloading hatches ensure efficient performance of the hopper car.
