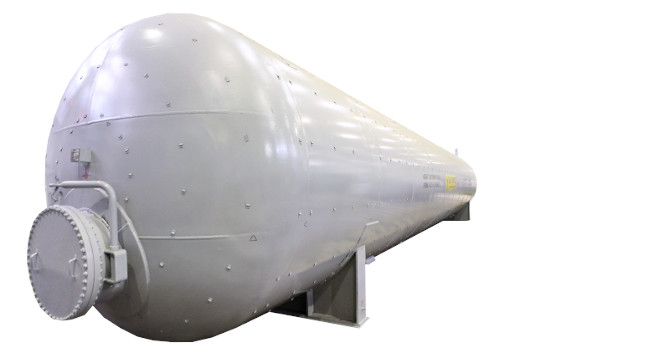

Settling tanks

Description

Settling tanks of 50,100 and 200 m³ volume are intended for preliminary discharge of formation water from oil.

Design gage pressure: 1.0 MPa (kgf/cm²).Minimum allowable working temperature of the tank wall is minus 100°C.

Settling tanks can be of standard design (Oil-Settling tank) or individual design (Modular Oil-Settling tank, Modular Unitized Oil-Settling tank, etc.). The final type of individual design is selected based on the specified process parameters.

Settling tank of 200 m³ volume is intended for preliminary discharge of formation water from oil.

Liquid output: 10,000 t/day.

Productivity, volumetric: 50 t/day.

Operating gage pressure: 0.8 (8) MPa (kgf/cm²).

Maximum allowable working temperature of the tank wall is 100°C.

Minimum allowable working temperature of the tank wall is minus 100°C.
