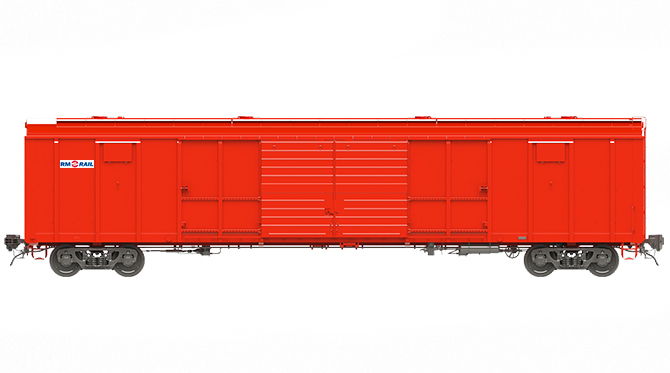

Box car
11-1268

  • Increased load capacity: 68 t
  • Enlarged door opening: 4050х2830 mm
Make an order
Specifications
Load capacity, t 68
Tare weight, t, min/max 25/26
Body capacity, m3: full 174
Axle load, tf 23,5
Loading gauge, GOST 9238-83 1-T
Floor area, m2 52,8
Length between truck centers, mm 14200
Lenght over couplers, mm 19500
Height above top of rail, max, mm 4830
Barrel inside diameter, mm 3280
Number of loading hatches, pcs:
on the roof (upon customer request)
4
on the side wall
4
Body internal length, mm  18270
Body internal width, mm
2890
Body height over cantrail, mm
2970
Body height internal max, mm
3450
Door opening dimensions, mm
4050х2830
Service life, years
32
Description

The roof is equipped with four loading hatches and ladders, the side walls are equipped with ventilation hatches that can be used as loading hatches.

The door design allows for inner lining of up to 10 mm thickness.

Direct ingress of moisture inside the car body is excluded.

Connections of the side and end walls with the frame and with each other, as well as with the roof, are made in such a way as to compensate as much as possible for significant probable deviations in the overall dimensions of the main units.

Connection of the roof with the end wall. Connection of the roof with the side wall.

Increased floor area of 52.8 square meters enables accommodation of 42 Euro pallets, 34 Industrial pallets or 28 Asian pallets.
